MICOMDOOR MI50

MI50 Electric Door Motor

Explanation about the operating device


The MICOMDOOR® MI50N operator is designed for intensive use over many years. It features a brushless DC motor that can reach speeds of up to 750 mm/second smoothly and with minimal noise, thanks to the use of a microprocessor (considered one of the most powerful processors on the market) capable of executing 30 million instructions per second (30 MIPs) and with a 16-bit architecture.

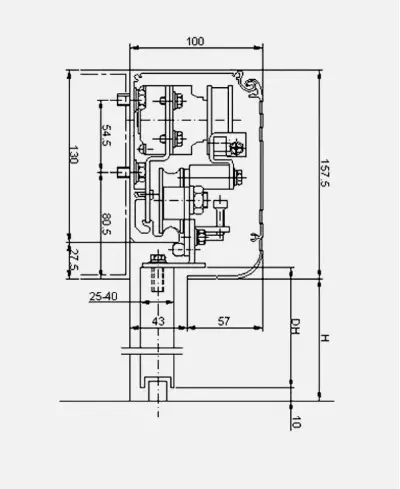

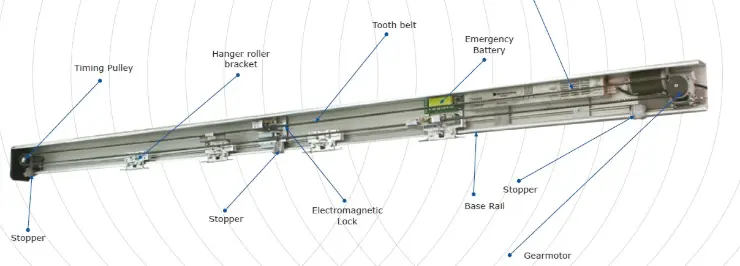

Operating parameters are easily adjusted via the control unit using push buttons. Additionally, the rail is designed to allow the installation of doors close to the center of gravity, which enhances the durability of the wheels and the entire operating system, ensuring long-lasting performance and high efficiency.

Specifications of the MICOMDOOR® MI50N Operating Device



✅ Power Supply:

AC voltage 100 – 240 volts, 50/60 hertz, 2 amps.

✅ Speed:

Adjustable from 70 to 750 mm/second.

the engine:

Brushless DC Motor with regulated control.

✅ Transmission:

Equipped with gears to enhance efficiency and durability.

✅ Control System:

Microprocessor for effective operation control.

✅ Brake System:

Automatic brake control.

✅ Time of the Conquest:

Adjustable from 0 to 60 seconds (10 levels).

✅ Door pressure to prevent gaps:

Ability to adjust a small force to keep the door closed or open, with a force ranging from 0 to 8 kg (5 levels).

✅ Security Functions:

  • Upon opening: If an obstruction is detected, the door stops and an alarm sounds.
  • Upon closing: If an obstruction is detected, the door will reopen and then close again at a low speed; if the obstruction persists, the door will stop and an alarm will sound.

✅ Fault Detection:

Notification of an error with its type indicated by a sound signal and displayed on the screen.

✅ Partial opening:

Ability to adjust partial opening with 10 levels ranging from 5% to 90%.

✅ Emergency Open/Close:

Ability to open or close the door in case of emergency, requiring a 19.2-volt battery.

the lock:

Optional (electromagnetic lock).

✅ Operating temperature and humidity:

  • Temperature: from -20° Celsius to +50° Celsius (without condensation or freezing).
  • Humidity level: from 30% to 85% (hazardous materials should not be stored in the surrounding environment).


Users can participate in beta testing programs, provide feedback on upcoming releases, and influence the future direction of the platform. By keeping up with updates, you will be able to take advantage of the latest tools and features offered by the system, ensuring that your company remains competitive and effective.

Discover the advantages of brushless motors?


🔹 Better speed-torque ratio

🔹 Faster dynamic response

🔹 Higher operational efficiency

🔹 Longer operating life

🔹 Lower noise level

🔹 Wider speed range

With MICOMDOOR® MI50N, achieve superior performance thanks to brushless motor technology!
